Galvanized C- Channel Steel
Classification :
PRODUCT DETAILS
Product Description
Hot-dip galvanized channel steel is also called hot-dip galvanized channel steel and hot-dip galvanized channel steel. It is an effective metal anti-corrosion method and is mainly used in metal structural facilities in various industries. It is to immerse the channel steel after derusting in the molten zinc of about 440~460 ℃, so that the zinc layer is attached to the surface of the channel steel, thus achieving the purpose of anti-corrosion. Now the main method of galvanizing the surface of the channel steel is hot dip galvanizing.
Product Parameters
Material | A36,St37,S235J0,S235J2,St52,16mn,S355JOQ195,Q215,Q235B,Q345B,S235JR,S355JR,S355,SS440,SM400A,SM400BA572,GR50,GR60,SS540 |
Scope of production | 50*37*4.5-400*104*14.5,75*40*3.8*7-152*76*6.4*9, 140*60*7*10-200*75*8.5*11.5 |
Length | 6m, 9m, 12mor according to customer requirements |
Technology | Hot rolled, welded |
Standard | ASTM,AISI,JIS,GB, DIN,EN |
Surface | Galvanized, painted;or according to your requirements |
supply capacity | 2000tons/Day |
Business Type | Manufacturer |
Certificate | ISO, SGS,BV |
Application | Widely used in building structures and engineering construction, such as room beams, ship beams, industrial furnaces, etc. |
loading port | Any port in China |
Packaging | Standard export packing or as your request |
Payment Method | Wire transfer, spot letter of credit, Western Union, payment documents, acceptance documents, PayPal. |
|

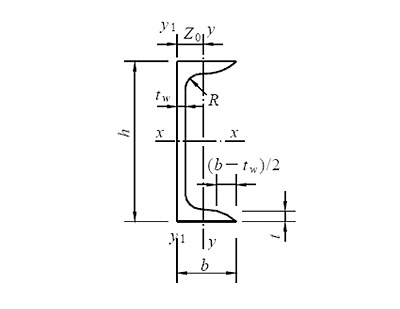

符号： 同普通工字钢 但 Wy 为对应翼缘肢尖 |
|
长度： 型号 5～8，长 5～12m； 型号 10～18，长 5～19m； 型号 20～20，长 6～19m。 |
||||||||||||||
|
|
尺 寸（mm） |
截面 面积 (cm2) |
理论 重量 (kg/m) |
x-x 轴 |
y-y 轴 |
y-y1 轴 |
Z0 |
|||||||||
|
h |
b |
tw |
t |
R |
Ix |
Wx |
ix |
Iy |
Wy |
Iy |
Iy1 |
|||||
|
(cm4) |
(cm3) |
(cm) |
(cm4) |
(cm3) |
(cm) |
(cm4) |
(cm) |
|||||||||
|
5 |
50 |
37 |
4.5 |
7 |
7 |
6.92 |
5.44 |
26 |
10.4 |
1.94 |
8.3 |
3.5 |
1.1 |
20.9 |
1.35 |
|
|
6.3 |
63 |
40 |
4.8 |
7.5 |
7.5 |
8.45 |
6.63 |
51 |
16.3 |
2.46 |
11.9 |
4.6 |
1.19 |
28.3 |
1.39 |
|
|
8 |
80 |
43 |
5 |
8 |
8 |
10.24 |
8.04 |
101 |
25.3 |
3.14 |
16.6 |
5.8 |
1.27 |
37.4 |
1.42 |
|
|
10 |
100 |
48 |
5.3 |
8.5 |
8.5 |
12.74 |
10 |
198 |
39.7 |
3.94 |
25.6 |
7.8 |
1.42 |
54.9 |
1.52 |
|
|
12.6 |
126 |
53 |
5.5 |
9 |
9 |
15.69 |
12.31 |
389 |
61.7 |
4.98 |
38 |
10.3 |
1.56 |
77.8 |
1.59 |
|
|
14 |
a |
140 |
58 |
6 |
9.5 |
9.5 |
18.51 |
14.53 |
564 |
80.5 |
5.52 |
53.2 |
13 |
1.7 |
107.2 |
1.71 |
|
b |
60 |
8 |
9.5 |
9.5 |
21.31 |
16.73 |
609 |
87.1 |
5.35 |
61.2 |
14.1 |
1.69 |
120.6 |
1.67 |
||
|
16 |
a |
160 |
63 |
6.5 |
10 |
10 |
21.95 |
17.23 |
866 |
108.3 |
6.28 |
73.4 |
16.3 |
1.83 |
144.1 |
1.79 |
|
b |
65 |
8.5 |
10 |
10 |
25.15 |
19.75 |
935 |
116.8 |
6.1 |
83.4 |
17.6 |
1.82 |
160.8 |
1.75 |
||
|
18 |
a |
180 |
68 |
7 |
10.5 |
10.5 |
25.69 |
20.17 |
1273 |
141.4 |
7.04 |
98.6 |
20 |
1.96 |
189.7 |
1.88 |
|
b |
70 |
9 |
10.5 |
10.5 |
29.29 |
22.99 |
1370 |
152.2 |
6.84 |
111 |
21.5 |
1.95 |
210.1 |
1.84 |
||
|
20 |
a |
200 |
73 |
7 |
11 |
11 |
28.83 |
22.63 |
1780 |
178 |
7.86 |
128 |
24.2 |
2.11 |
244 |
2.01 |
|
b |
75 |
9 |
11 |
11 |
32.83 |
25.77 |
1914 |
191.4 |
7.64 |
143.6 |
25.9 |
2.09 |
268.4 |
1.95 |
||
|
|
a |
220 |
77 |
7 |
11.5 |
11.5 |
31.84 |
24.99 |
2394 |
217.6 |
8.67 |
157.8 |
28.2 |
2.23 |
298.2 |
2.1 |
|
b |
79 |
9 |
11.5 |
11.5 |
36.24 |
28.45 |
2571 |
233.8 |
8.42 |
176.5 |
30.1 |
2.21 |
326.3 |
2.03 |
||
|
25
|
a |
250 |
78 |
7 |
12 |
12 |
34.91 |
27.4 |
3359 |
268.7 |
9.81 |
175.9 |
30.7 |
2.24 |
324.8 |
2.07 |
|
b |
80 |
9 |
12 |
12 |
39.91 |
31.33 |
3619 |
289.6 |
9.52 |
196.4 |
32.7 |
2.22 |
355.1 |
1.99 |
||
|
c |
82 |
11 |
12 |
12 |
44.91 |
35.25 |
3880 |
310.4 |
9.3 |
215.9 |
34.6 |
2.19 |
388.6 |
1.96 |
||
|
28
|
a |
280 |
82 |
7.5 |
12.5 |
12.5 |
40.02 |
31.42 |
4753 |
339.5 |
10.9 |
217.9 |
35.7 |
2.33 |
393.3 |
2.09 |
|
b |
84 |
9.5 |
12.5 |
12.5 |
45.62 |
35.81 |
5118 |
365.6 |
10.59 |
241.5 |
37.9 |
2.3 |
428.5 |
2.02 |
||
|
c |
86 |
11.5 |
12.5 |
12.5 |
51.22 |
40.21 |
5484 |
391.7 |
10.35 |
264.1 |
40 |
2.27 |
467.3 |
1.99 |
||
|
32 |
a |
320 |
88 |
8 |
14 |
14 |
48.5 |
38.07 |
7511 |
469.4 |
12.44 |
304.7 |
46.4 |
2.51 |
547.5 |
2.24 |
|
b |
90 |
10 |
14 |
14 |
54.9 |
43.1 |
8057 |
503.5 |
12.11 |
335.6 |
49.1 |
2.47 |
592.9 |
2.16 |
||
|
c |
92 |
12 |
14 |
14 |
61.3 |
48.12 |
8603 |
537.7 |
11.85 |
365 |
51.6 |
2.44 |
642.7 |
2.13 |
||
|
36 |
a |
360 |
96 |
9 |
16 |
16 |
60.89 |
47.8 |
11874 |
659.7 |
13.96 |
455 |
63.6 |
2.73 |
818.5 |
2.44 |
|
b |
98 |
11 |
16 |
16 |
68.09 |
53.45 |
12652 |
702.9 |
13.63 |
496.7 |
66.9 |
2.7 |
880.5 |
2.37 |
||
|
c |
100 |
13 |
16 |
16 |
75.29 |
59.1 |
13429 |
746.1 |
13.36 |
536.6 |
70 |
2.67 |
948 |
2.34 |
||
|
40 |
a |
400 |
100 |
10.5 |
18 |
18 |
75.04 |
58.91 |
17578 |
878.9 |
15.3 |
592 |
78.8 |
2.81 |
1057.9 |
2.49 |
|
b |
102 |
12.5 |
18 |
18 |
83.04 |
65.19 |
18644 |
932.2 |
14.98 |
640.6 |
82.6 |
2.78 |
1135.8 |
2.44 |
||
|
c |
104 |
14.5 |
18 |
18 |
91.04 |
71.47 |
19711 |
985.6 |
14.71 |
687.8 |
86.2 |
2.75 |
1220.3 |
2.42 |
||
Factory Appearance
Lingyue Metal Technology Co., Ltd.
Packing and shipping
The company mainly exports to more than 60 countries including Australia Peru,Colombia, Brazil, Bangladesh, India, South Korea, Pakistan, Italy, Turkey, etc. The main export products include steel plate/coils/pipes/bars and other steel products.
Customer visit
The management has been engaged in steel industry for more than 20 years, full of experience for managing team and strong business relations with our valuable customers and factories.
Application areas
lingyue's annual sales more than 10 million tons, and provides a variety of product customized processing services. Our company always sticks to the following business principles: High Quality Products to win the market; Competitive Price to attract customers; Excellent Service to gain reputation.
FAQ
How to control and guarantee your shipment quality?
A:（1）All our factories are ISO 9001 certified facility; （2）World famous origin mills as TISCO, Bao steel; （3）Ex factory inspection by our own laboratory; （4）SGS/BV Third party inspection before delivery.
How long is your delivery time?
A:Our daily inventory is more than 8000 tons, so far common products size,just need 5 days from stocks; if the special size from new production, delivery 7-15 days.
How about the samples? Is it free to extra fees?
A：Samples are free, you need to pay for shipping.
What is your payment terms?
A:Commonly two payment term for new customers （1）30%T/T as deposit,70% balance against B/L copy. （2）100% Irrevocable L/C at sight. If you need other terms, please feel free to contact us too, we will try our best.
Will you can accept the customized and OEM products?
A:Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development team,so the feedback is very good for customized product.
